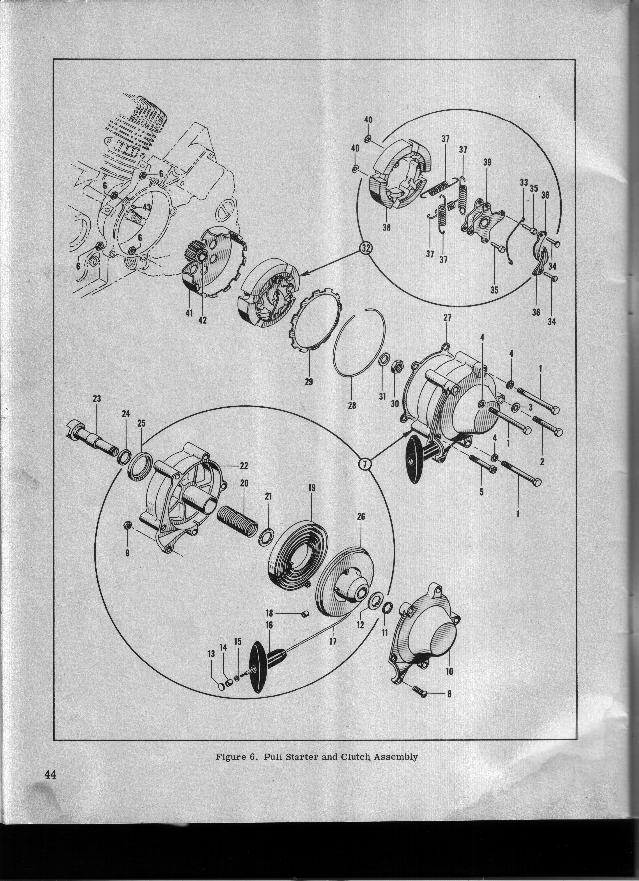

Index no.	part no.	Description		units per assy.
-------------------------------------------------------------------------------
 1		102320		Screw - Hex hd mach 10-24x2-1/2 in lg. 3
 2		102586		Screw - Hex hd mach 10-24x2 in. lg ... 1
 3		101194		Lockwasher - No. 10 .................. 1
 4		100002		Washer - Plain No. 10 ................ 3
 5		101974		Screw - Fil hd mach 10-24x1-1/2 in lg. 1
 6		101326		Nut - Self locking 10-24 ............. 4
 7		19550		Starter Assembly - Engine ............ 1
 8		101989		. Screw - Rd hd mach 10-24x1/2 in lg . 1
 9		101191		. Nut - Self locking 10-24 ........... 1
 10		19551		. Cover - Starter .................... 8
 11		101795		. Snap Ring - Drum retaining ......... 1
 12		24488		. Washer - Starter keyed ............. 1
		19421		. Starter Rope and anchor Handle Assy  1
		19422		. . Starter Rope and Handle Assembly . 1
		18947A		. . . Handle Assembly ................ 1
 13		18840A		. . . . Plug - Starter Handle ........ 1
 14		19401		. . . . Anchor - Starter rope handle . 1
 15		101871		. . . . Washer - Plain No. 4 ......... 1
 16		18849A		. . . . Handle - Starter rope ........ 1
 17		19110		. . . Rope - Starter ................. 1
 18		19401		. . Anchor - Starter rope drum ....... 1
 19		18142A		. Spring - Rewind .................... 1
 20		19549		. Spring - Starter Clutch ............ 1
 21		19568		. Washer - Starter ................... 1
 22		19545		. Housing Assembly - Starter ......... 1
 23		19547		. Shaft - Starter .................... 1
 24		19548		. Bushing - Starter housing .......... 1
 25		101611		. Seal - Oil ......................... 1
 26		19538		. Drum Assembly - Starter ............ 1
 27 		18180		Gasket - Starter to gear case ........ 1
 28		19114		Ring - Clutch disc retaining .080 ....As Req.
		19114A		Ring - Clutch disc retaining .041 ....As Req.
		19114B		Ring - Clutch disc retaining .051 ....As Req.
		19114C		Ring - Clutch disc retaining .063 ....As Req.
		19114D		Ring - Clutch disc retaining .090 ....As Req.
		19114E		Ring - Clutch disc retaining .100 ....As Req.
		19114F		Ring - Clutch disc retaining .112 ....As Req.
		19114G		Ring - Clutch disc retaining .124 ....As Req.
		19114H		Ring - Clutch disc retaining .071 ....As Req.
 29		28113		Disc - Friction clutch ............... 1
 30		101179		Nut - Hex jam 7/16-20 ................ 1
 31		101093		Washer - Plain 7/16 .................. 1
 32		19074		Rotor Assembly - Clutch .............. 1
 33		19755		. Spring - Starter pawl .............. 2
 34		19072A		. Pin - Clutch pivot ................. 2
 35		19752A		. Pin - Clutch pivot ................. 2
 36		19046		. Pawl - Starter ..................... 2
 37		19124A		. Spring - Clutch shoe ............... 4
 38		19068		. Shoe Assembly - Clutch ............. 4
 39		19075A		. Spider Assembly - Clutch ........... 1
 40		102692		. Lockwasher - No. 10 external ....... 4
 41		28072		Clutch Drum and Pinion Assembly w/brg. 1
 42		19071		. Bearing - Pinion gear .............. 1
 43		100199		Key - Cluch to crankshaft ............ 1
