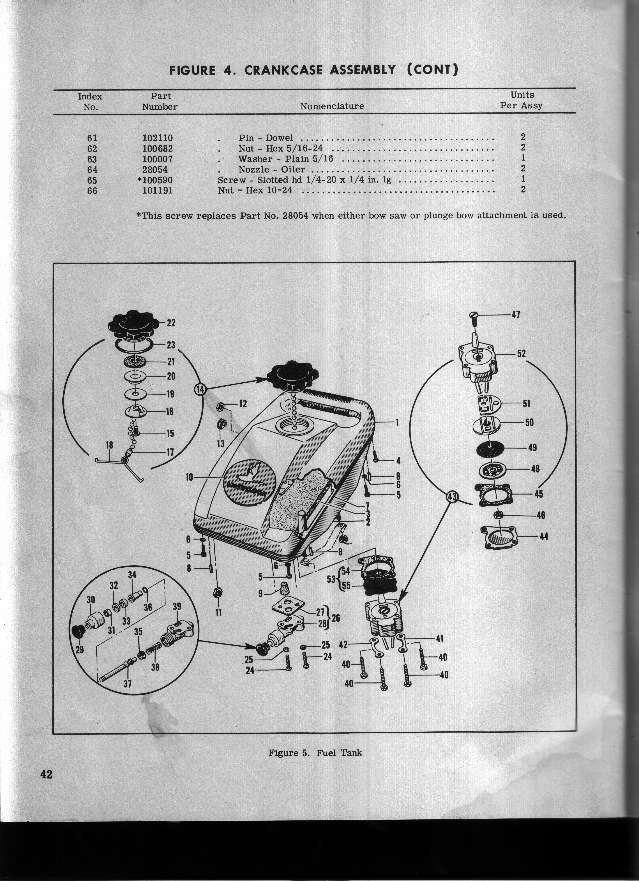

------------------------------------------------------------------------------- Index no. part no. Description units per assy. ------------------------------------------------------------------------------- 28328 Fuel Tank Assembly .................. 1 1 28064 . Top - Fuel tank (includes gasket, attaching screws, and nuts) ......... 1 2 28323 . Bottom - Fuel tank (includes gasket, attaching screws, nuts, and pickup . 1 3 28265 . . Pickup Assembly - Fuel .......... 1 4 101385 . Screw - Oval hd mach 10-24x7/8 in.. 2 5 100243 . Screw - Fil hd mach 10-24x.62 in lg 14 6 100240 . Lockwasher - Spring No. 10 light .. 14 7 19685A . Gasket - Fuel tank (replace only).. 1 8 102270 . Pin - Roll ........................ 4 9 28091 . Filter - Metal .................... 1 10 28084 . Medallion ......................... 1 28090 . Adhesive - Plastic ................ 1 11 101143 Nut - Hex self locking 1/4-20 ....... 2 12 101362 Nut - Hex self locking 10-24 ........ 1 13 28053 Retainer - Nut ...................... 1 14 19701A Fuel Cap and Gasket Assembly ........ 1 15 102415 . Screw - Pan hd 10-24x.38 in lg .... 1 16 19916 . Disc - Fuel cap ................... 1 17 101161 . Chain ............................. 1 18 18191A . Retainer - Fuel cap ............... 1 19 19915 . Washer - Fuel cap ................. 1 20 19928 . Disc - Fuel cap ................... 1 21 19917 . Pad - Felt ........................ 1 22 19918 . Cap - Fuel ........................ 1 23 101348 . "O"Ring - Fuel cap ................ 1 24 101992 Screw - Rd hd mach 10-24x.88 in. lg . 2 25 100240 Lockwasher - Spring No. 10 light .... 2 26 19397A Primer Assembly (with gasket) ....... 1 27 19396A . Gasket - Primer ................... 1 28 19961 . Primer Assembly ................... 1 29 19970 . . Button - Primer ................. 1 30 19969 . . Nut - Primer .................... 1 31 19968 . . Seal - Primer ................... 1 32 102523 . . Washer - Special ................ 1 33 19967 . . Packing - Primer ................ 1 34 19966 . . Sleeve - Primer ................. 1 35 24104 . . Cup - Packing ................... 1 36 101258 . . "O"Ring ......................... 1 37 19965 . . Plunger - Primer ................ 1 38 11086 . . Spring - Primer ................. 1 39 19962 . . Body Assembly - Primer .......... 1 40 102291 Screw - Hex head mach 10-24x1 in. lg. 4 41 28210 Lockplate ........................... 1 42 28211 Lockplate ........................... 1 43 19960 Pump Assembly - Fuel ................ 1 44 19253 . Cover - Fuel pump ................. 1 45 19255 . Gasket - Cover to body ............ 1 46 100703 . Nut - Hex self locking 10-32 ..... 1 47 100625 . Screw - Fil hd mach 10-32x1/2 in lg 1 48 19815 . Retainer - Screen ................. 1 49 19256 . Screen - Fuel pump ................ 1 50 19645 . Retainer - Valve .................. 1 51 19933 . Valve - Fuel pump ................. 1 52 19651 . Body Assembly - Fuel pump ......... 1 53 19534 Diaphragm Assembly .................. 1 54 19513 . Gasket ............................ 1 55 19259 . Diaphragm ......................... 1
