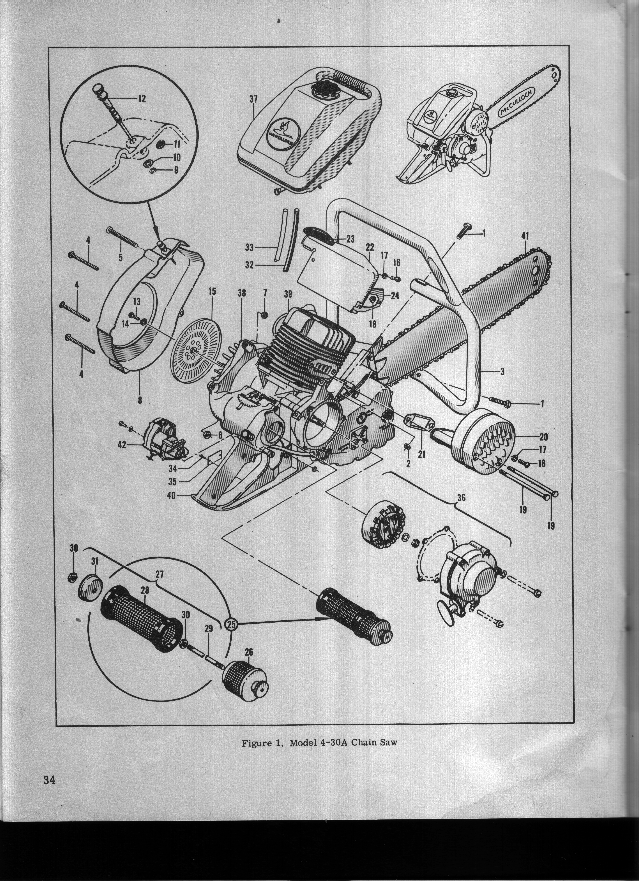

Index no. part no. Description units per assy.
-------------------------------------------------------------------------------
1 102130 Screw - hex hd 1/4-20x1-1/2 in. lg. 3
2 101143 Nut - hex 1/4-20.................... 3
3 28213 Frame - Saw ........................ 1
4 101994 Screw - Rd hd 10-24x1-3/4 in. lg ... 3
5 101997 Screw - Rd hd 1/4-20x1-3/4 in. lg .. 1
6 101191 Nut - Hex 10-24 .................... 1
7 101326 Nut - Hex 10-24 .................... 1
8 28316 Fan Housing Asembly ................ 1
9 101913 .Clip - Spring ..................... 1
10 100004 .Washer - Plain 1/4 in. ............ 1
11 28049 . Spring - Ignition switch ......... 1
12 28048 . Shaft - Ignition switch .......... 1
13 101988 Screw - Fil Hd mach 10-24x .38 in lg 1
14 101194 Lockwasher No. 10 .................. 1
15 19007 Guard - Sawdust .................... 1
16 101988 Screw - Fil Hd mach 10-24x .38 in lg 2
17 100002 Washer - Plain No. 10 .............. 2
18 101191 Nut - Hex 10-24 .................... 1
19 102024 Screw - Hex hd 1/4-20x3-3/4 in lg... 2
20 19044 Muffler Assembly - Exhaust ......... 1
21 19027 Gasket - Exhaust ................... 1
22 28225 Shroud - Cylinder .................. 1
23 19696 Cover - Spark Plug ................. 1
24 28222 Jacket - Cylinder .................. 1
25 19792 Precleaner Body airfilter+rod assy.. 1
26 19788 . Body Assy. Carb Precleaner ....... 1
27 19791 . Air Filter and Rod assy. ......... 1
28 19483A . . Air Filter Assy. ............... 1
29 19793 . . Rod - Air filter ............... 1
30 101191 . . Nut - Hex 10-24 ................ 2
31 19510A . . Retainer - Air Filter .......... 1
32 19649 Hose - Fuel Delivery (black)........ 1
33 18848 Hose - Fuel Return (silver) ........ 1
34 100082 Screw - Rd hd drive ................ 2
35 19235 Name Plate ......................... 1
REFERENCED ITEMS
36 No Number Pull Starter and Clutch assembly (See figure 6)
37 No Number Fuel Tank (See figure 5)
38 No Number Ignition System, Flywheel, Crankcase Cover and Rotary
Valve (See figure 2)
39 No Number Cylinder, Piston and Gear Case (See figure 3)
40 No Number Crankcase Assembly (See figure 4)
41 No Number Adjusting Lockplate, Blade and Chains (See figure 7
42 No Number Carburetor Diaphragm Chamber (see figure 8)
