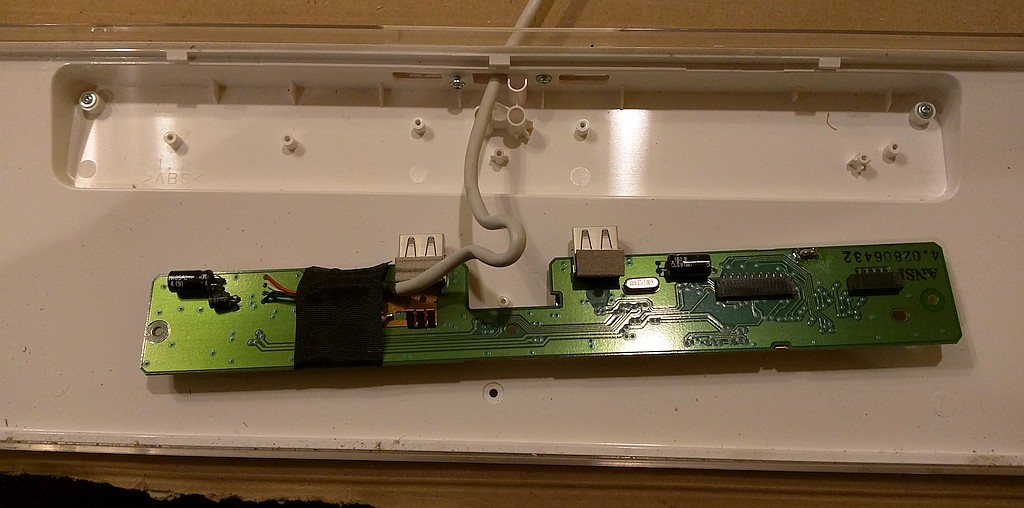

Remove the four PCB screws, feed some more of the USB cable into the bottom assembly and move the PCB out of the way. Remove the two screws that retain USB port shield from the clear bottom tray. (9/37)
